Layouts

From the Layouts tab, you can create, manage, and preview web layouts.

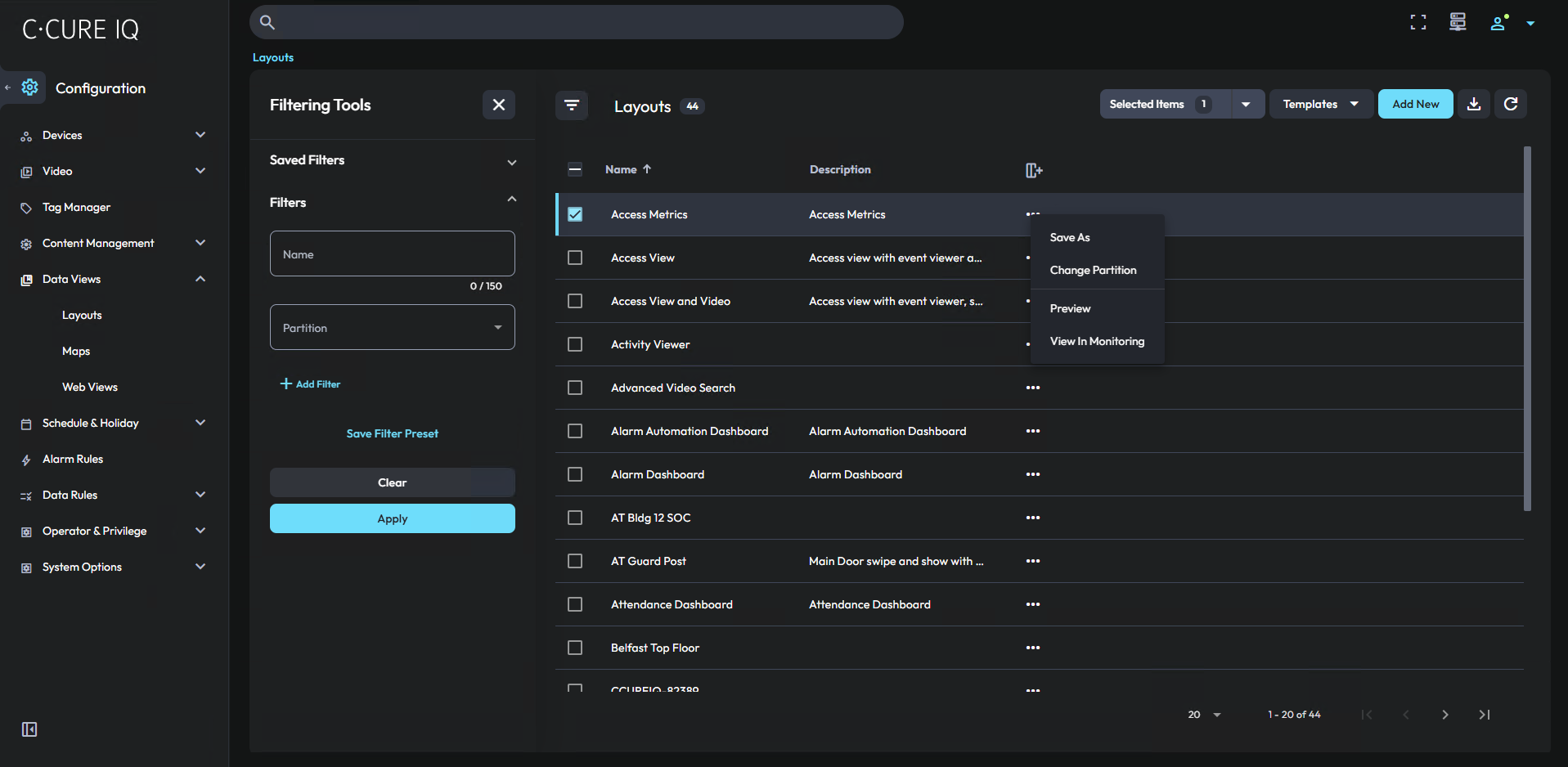

Figure 1. Layouts tab
C•CURE IQ includes the following pre-configured web layouts:
  • Access View
  • Access View and Video
  • Event Viewer
  • Video Monitoring
  • Swipe and Show
  • Personnel Monitoring
  • System Health Dashboard
  • Personnel Intelligence
  • Virtual Headcount
  • Last Known Location
  • Access Metrics

When you create a custom web layout, use the layout editor's drag and drop interface to place widgets on the grid. You can pre-configure widgets, so they automatically monitor specific objects when an operator opens that web layout. For example, you can configure a Swipe and Show widget to monitor specific doors, or you can pre-configure a video monitoring widget to display selected cameras

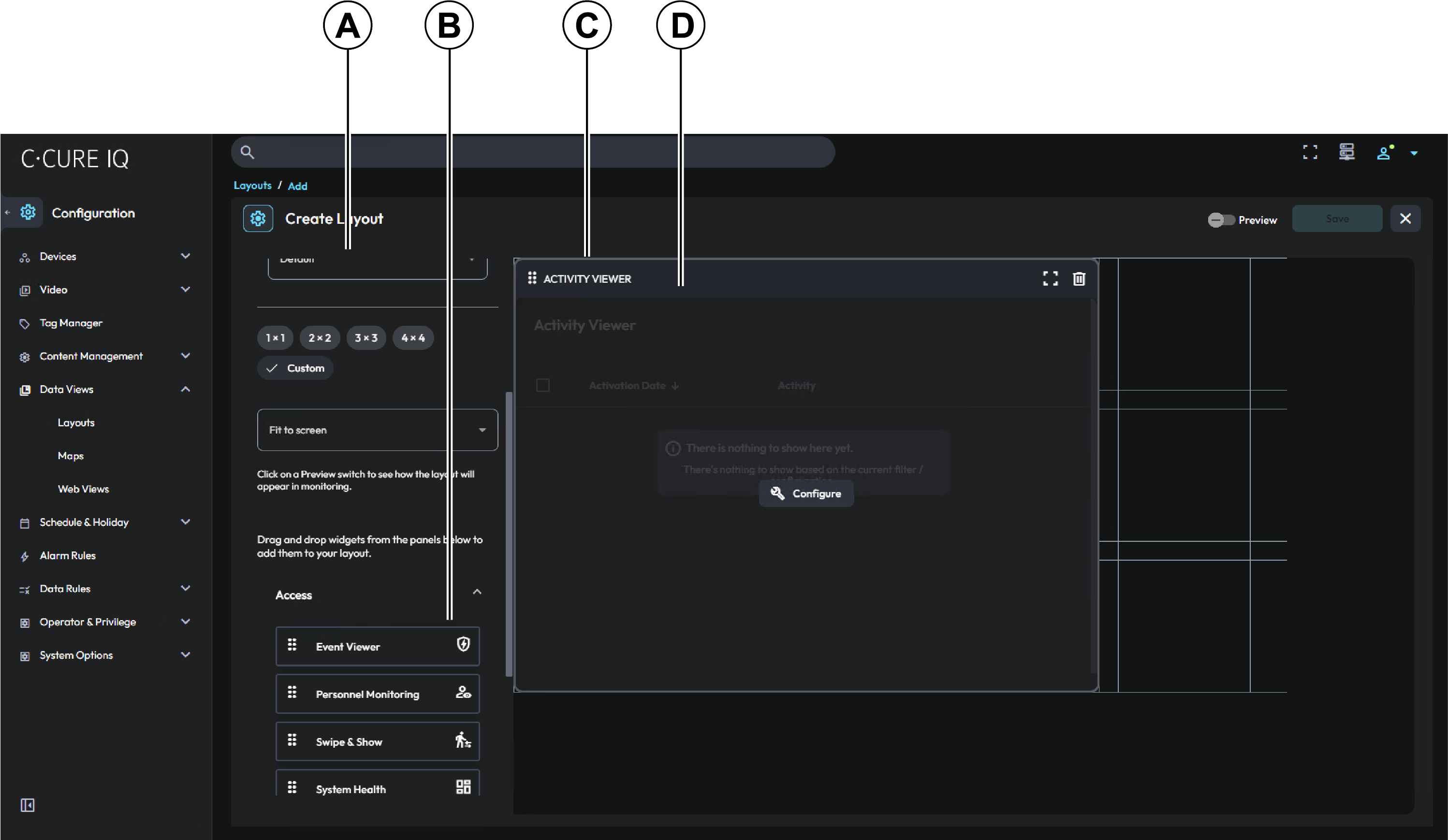

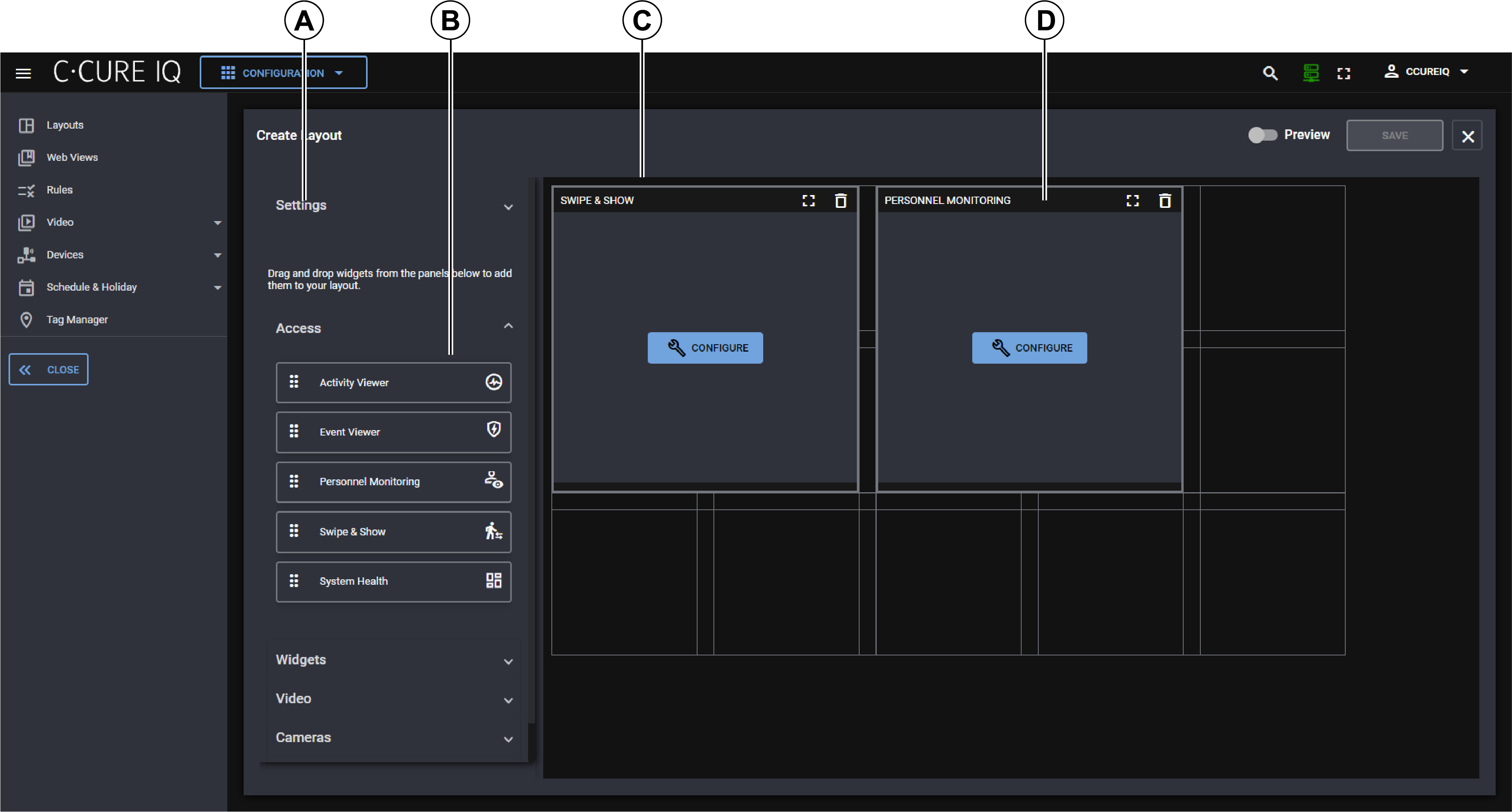

Figure 2. Layout editor
Callout Name Description
A Settings In this area, you can configure web layout settings.
B Menu Widget area This area displays menu widgets. Expand a menu to display widgets that are associated with that menu. To add a widget to your custom web layout, drag the widget onto the layout pane.
C Layout pane This pane displays your custom web layout.
D Widget You can resize and reposition widgets on the layout pane, and you can configure widget settings. If required, you can also delete widgets from your web layout.
Administrators can assign different web layouts to different operators from the C•CURE 9000 Administration Workstation. For example, in C•CURE IQ, you can create custom web layout that includes the Swipe and Show and Video Monitoring widgets. In the C•CURE 9000Administration Workstation, an administrator can assign that web layout to a security guard. When the security guard logs into C•CURE IQ, they can access the custom web layout from the Monitoring module.
Note: If you assign web layouts to an operator, when they log into C•CURE IQ, they can access only those web layouts. If you do not assign web layouts to an operator, when they log into C•CURE IQ, they can access all of the available layouts. For more information about assigning layouts to an operator, refer to the Operators chapter of the C•CURE 9000 Software Configuration Guide

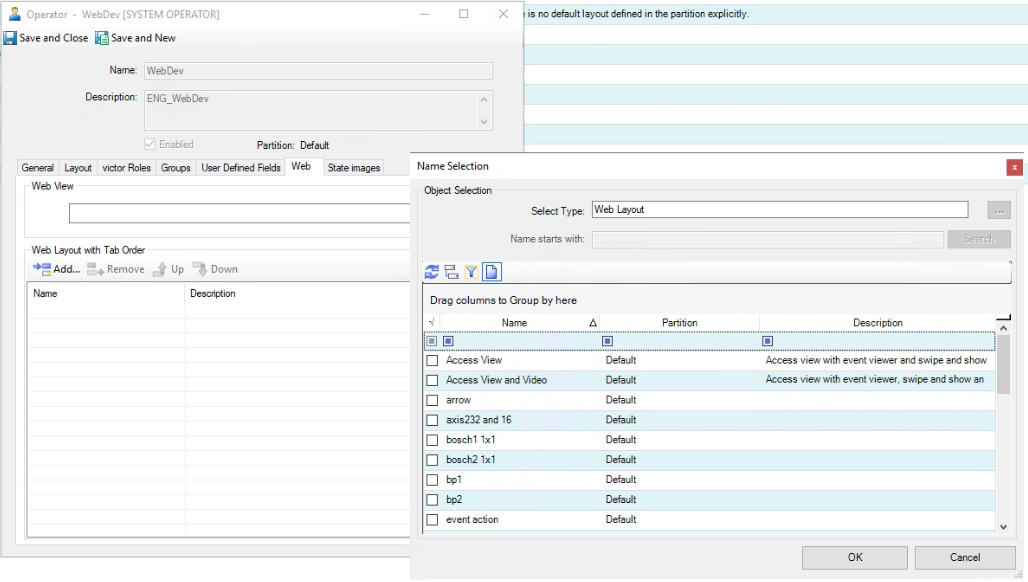

Figure 3. Assigning web layouts in the Administration Workstation
Note:
  • In Enterprise SAS environment, before creating any Custom layouts using Add New or by using Save As option available under Intrinsic layout, operator should verify the Partition selected is Global or Default Partition.
  • In SAS, any layouts created under Global Partition will start syncing to MAS and layouts created in SAS will start displaying in MAS Config APP instead of SAS Config App.
  • If operator selects Default Partition, then layouts created in SAS will start displaying in SAS Config App only.
  • Partition change can be made through the following ways:
    • Navigate to User Profile Settings and select Default instead of Global.
    • Click Add New or select Save As under Intrinsic layout in Config App (Partition change can be done in Layout creation page/Layout details updating page).
