The Activity Viewer tracks all system activities, such as user log on,
personnel access, device errors, and messages. If the activity viewer is online, it
displays real-time notifications for events.
You can monitor system activities from any web layout that contains the Activity Viewer module.
When you create a web layout, you can also choose which activities appear in its
activity viewer
As new activities occur, they appear at the top of the Activity Viewer list. However, new
activities do not appear while the operator is scrolling through the list. After a
certain amount of time (set by the system administrator), the cursor returns to the top

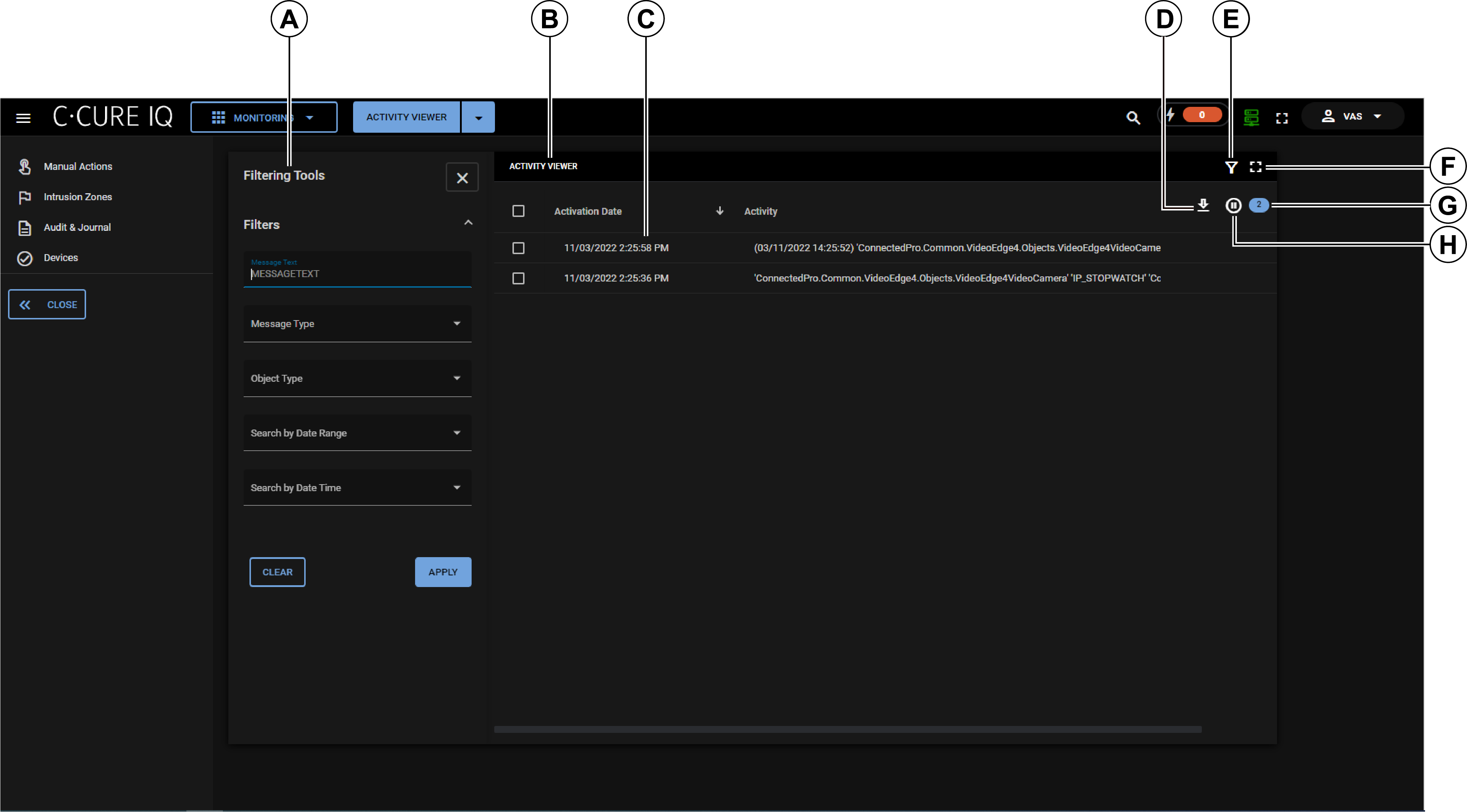

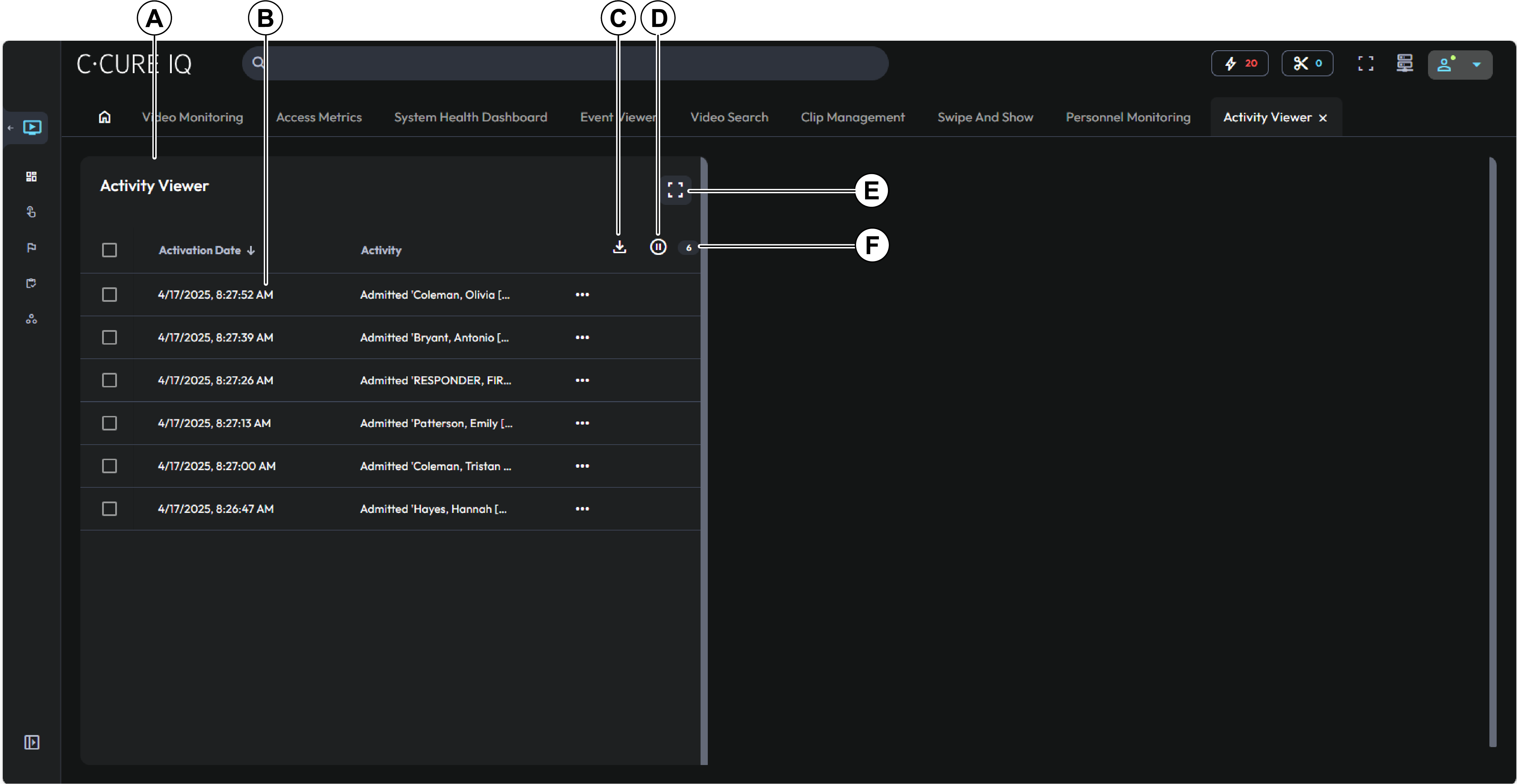

of the list to display the most recent message.Figure 1. The Activity Viewer module
Callout
Name
Description
A
The Activity Viewer module
If the activity viewer is online, it displays a list of system
activities as they occur.
B
System activity data
Shows system activity data
C
Download
Click this icon to download the activity viewer data. You can
download the data as a PDF or CSV file.
D
Pause activity viewer
Click this icon to pause the viewer for 30 seconds. To un-pause
the stream, either wait for the countdown to end, or click the play
icon to display activities again.
E
Maximize pane
Click this icon to maximize the Activity Viewer pane.
F
Event count
The event count icon displays a count of the number of events
that are displayed in the Activity Viewer.
