Swipe and Show monitoring

The Swipe and Show module displays a live list of personnel who swipe their card to gain access to an area. The most recent card swipes are displayed at the top of the list. Operators can view admitted or rejected card swipes, and if a card is rejected the user can perform a momentary unlock door or grace personnel in order to grant admittance. If a video camera is associated with a door or elevator, you can also view a video of the card swipe. See Viewing a swipe result for more information.

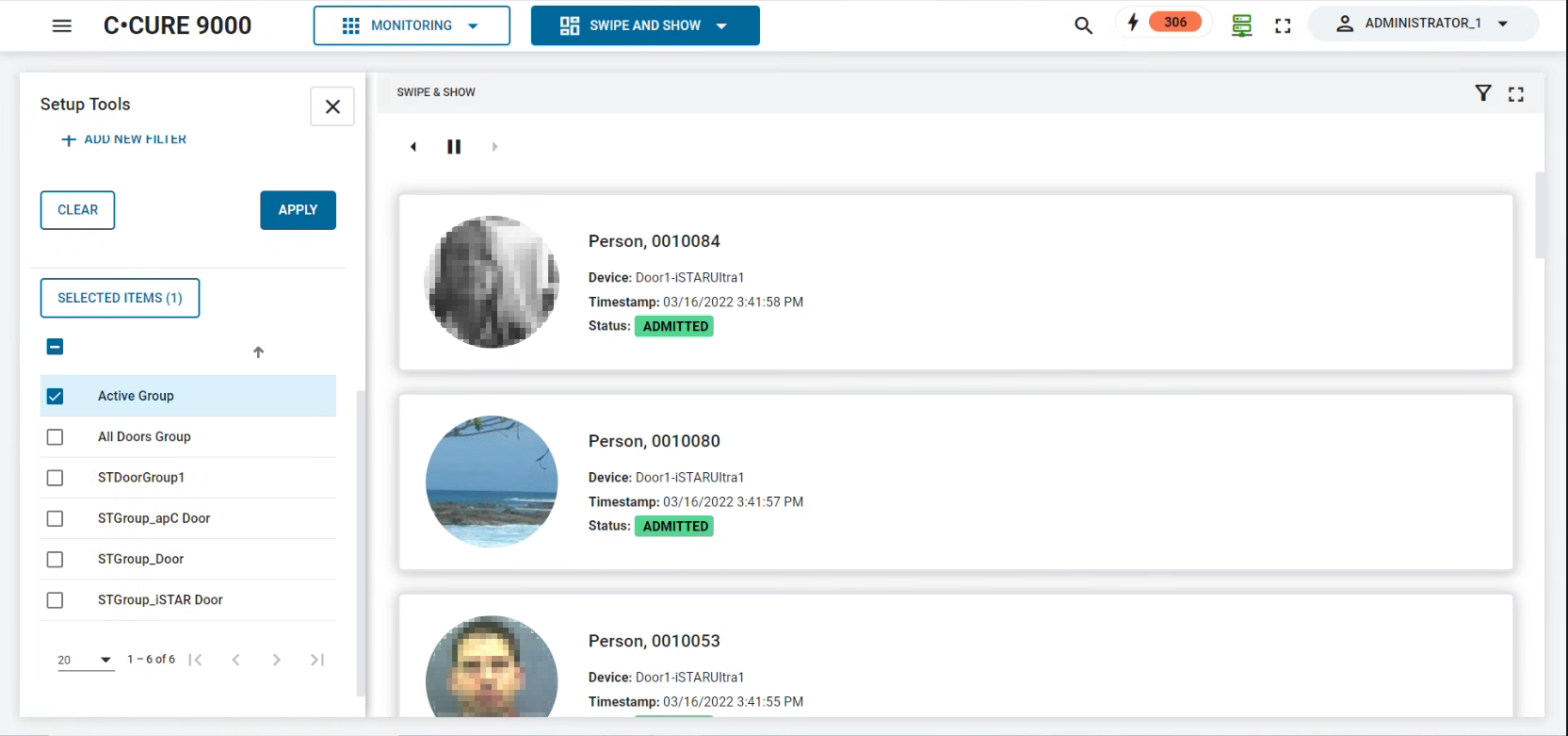

Figure 1. The Swipe and Show module
You can access the Swipe and Show module from the following pre-configured web layouts:
  • Swipe and Show
  • Access View
  • Access View and Video
Alternatively, you can select a custom web layout that contains a Swipe and Show widget. You can configure Swipe and Show widgets to display additional information from a user's personnel profile.

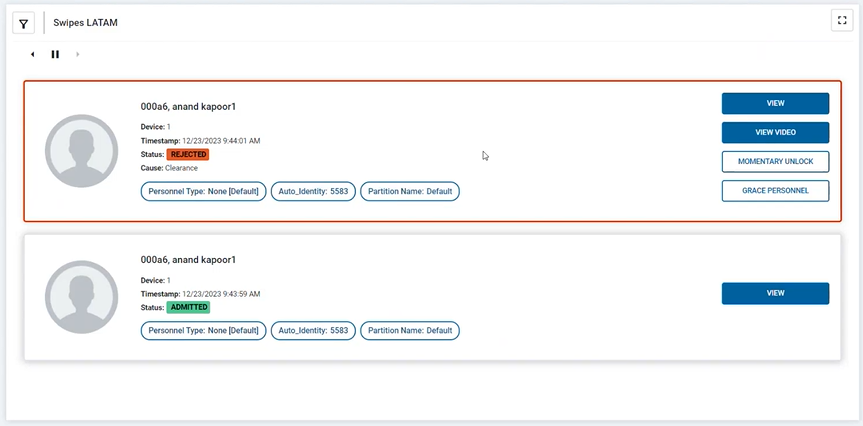

Figure 2. Swipe and Show widget with additional information

For more information about custom web layouts, see Creating a web layout.
